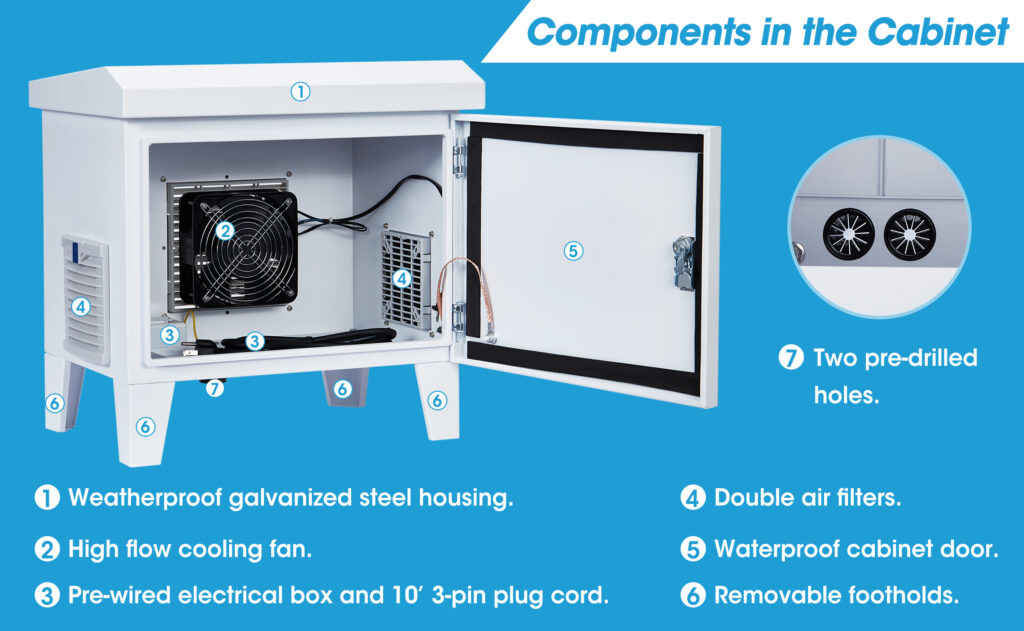

Outdoor Cabinet, Housing for Pond Aerator, fit for PAS10/20 System.
Galvanized Steel Housing, Good Quality and Reliable. Waterproof and quiet, 10 dB noise decline.
Good Ventilation, Dust-free. 21W Cooling Fan and two sponge air filters included.
Benefits
- Lower down the noise, 10dB.
- Easy installation, very few manintenance needed.
- Protect the pump away from sunshine/rain/snow/small flooding.
- Ventilate the air compresoor, very important for the life time.
- Two sides air fiter, dust-free, protect the air compressor.
- Inner outlet provided, no need hard wire. Outside 10′ 3-ping electric cord with plug could fit for outdoor outlet.
- Full warranty covered. 2 Years for the electrical part and 5 Years for the cabinet itself.
Why is the ventilation so important?
For the air compressor, the ambient temperature is so important. It should not over 105°F (40°C) for long time using. It would fast the worn out of the bearing and motor in the air compressor. If you want DIY a housing like this one, you should open at least two 6”-10” holes on two sides of the pump fans, and install a 6” 20W cooling fan towards to the center of the pump, where the motor stay.
Specification Dimension 19″ × 19″ × 14″ (48cm × 48cm × 35cm)
Max Pump Size 16″ × 14″ × 8″ (40cm × 35cm × 20cm)
Material Galvanized Steel
IP 53
Cooling Fan 6”, 110V, 60Hz, 21W, 3000 RPM, 196 CFM
Manual Book: HQUA-ASC01 Instruction Manual Book.pdf
